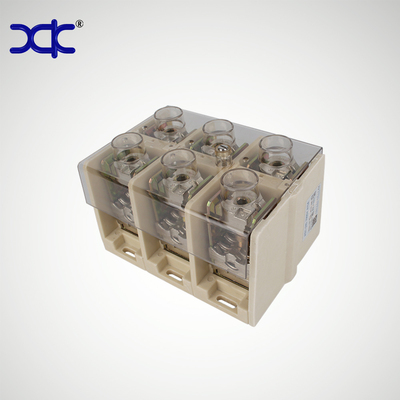

JH27-300

Product Detail

Rated voltage/ current/Cross-section: 1 000V/630A/300mm²
Screw　 M16	Torque（N.m） 5　 Stripping length(mm) 42	Mounting screw　　　M6
Model	Type	Wiring range(mm²)
JH27-300	1input(cable), 1 output(cable),	50～300
JH27-300B	1input(bar), 1 output(bar)	Bar Width≤40mm
JH27-300C	1input(bar),1 output(cable)	In (Width≤40),Out 50～300
JH27-300D	1input(cable), 2 output(cable)	In 50～300,Out 25～240
JH27-300E	1input(bar), 2 output(cable)	In (Width≤40),Out 25～240
JH27-300J	2 input(cable), 2 output(cable)	In 35～240,Out 35～240
JH27-300T	1input(cab;e), 3 output(cable)	In 50～300,Out 25～95
